- 【What You Get】You will get: 1set of metal frame, 4pcs diameter =97mm mecanum wheels, 4pcs 37 DC encoder motors, and screw kit. It's easy to assemble the mecanum wheeled car chassis, just put the robot parts by this Amazon link product. Then, fix it with screws.
- 【AGV Function】AGV now is very popular in the warehouse to carry the goods. With this robot car chassis based on the mecanum omni-directional wheels and 4pcs encoder motors, you will have use the electronics controller to control the smart car chassis move. It is another choice for the AGV function realization, but with low cost price.
- 【Robot Learning】This mecanum wheel smart robot car chassis kit belongs to the robotics. You can learn how to assemble it, the robotic structure, the model, the function, then you can design or improve the robot as you like. Specially, you can learn the controllers, like Arduino uno R3, raspberry pie, 51 MCU.
- 【Code Programming】STEAM education is for teens code programming, robotics learning. Based on this robot chassis, by help of the controller, e.g., Arduino, then you can learn to code programming to realize the robot function. Move, left turn, right turn, and other functions.
- 【Solid but Not Expensive】This metal robot chassis is very solid, together with the high torque DC encoder motor, and 4pcs 97mm mecanum wheels. The big load maybe about 0-10kg. It can be a suitable choice for robot chassis.
Introduction

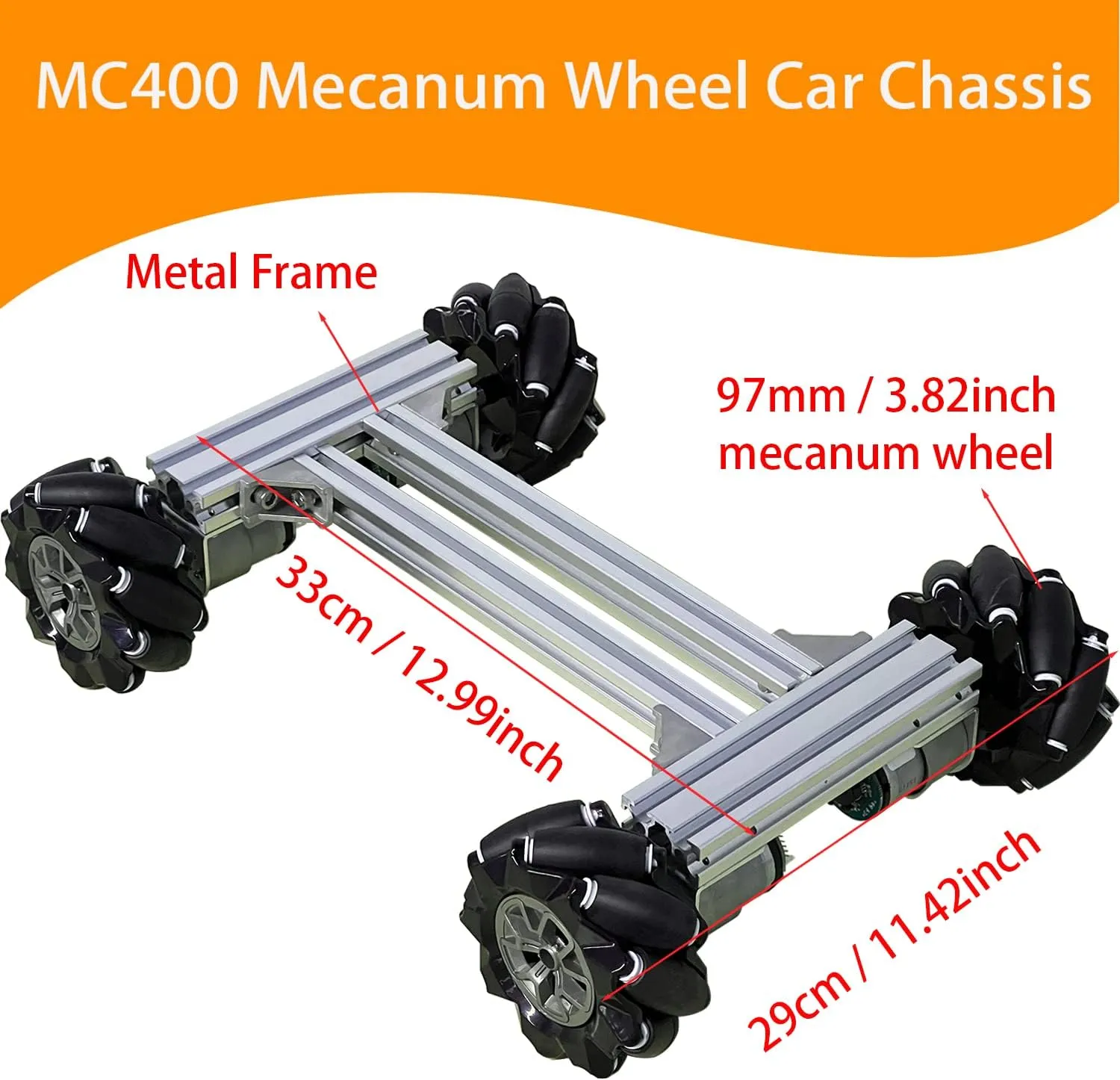

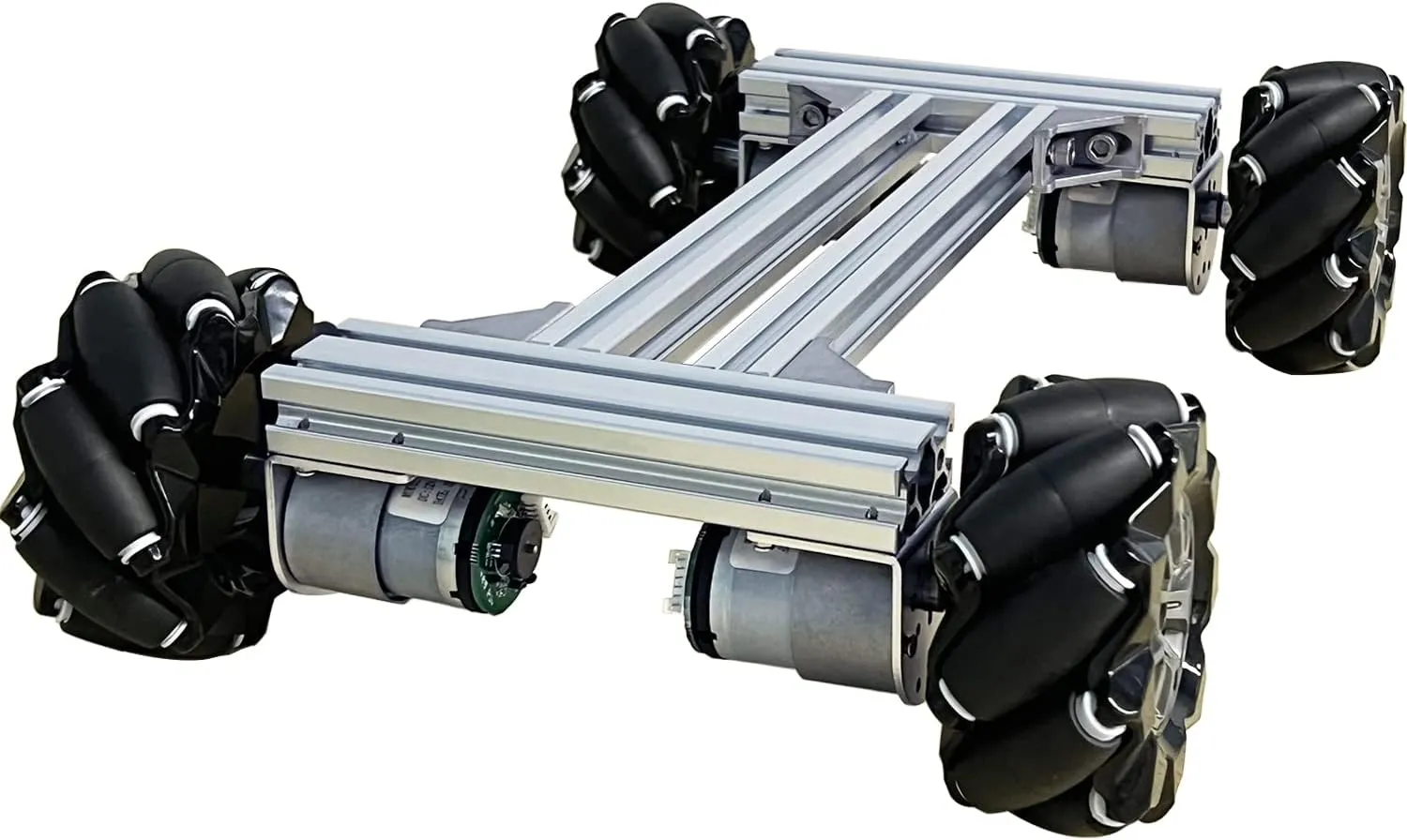

This mecanum wheel metal robot car chassis is very solid. With the help of controller, you can DIY a smart car chassis with the mecanum omni directional wheels. You can let the car move left, right, forward, backward, or other directions.
Car Parameters:
- Frame material: Aluminum
- Size: 10*29*33cm / 3.94*11.42*12.99inch
- Wheel Parameters
- Name: 97mm Mecanum Wheel
- Materials: high quality plastic, rubber(roller)
- Weight: 150g / 0.33lb (1pc wheel)
- Inner diameter: 8mm / 0.31inch
- Outer wheel diameter: 97mm / 3.82inch
- Thickness: 37mm / 1.46inch (without couplings)
- Number of sub-wheels: 9
- Bearing capacity: can bear 0-10kg(4pcs wheel together)
Motor Parameters:
- rate volate: 12v
- rated power: 4.8w
- type: brush DC motor
- stall current: 2.8mA
- stall torque: 10kgf.cm
- rated current: 360mA
- rated torque: 1kgf.cm
- original speed: 110000rpm
- reduced speed ratio: 1:30
- encoder voltage: 3.5-5v
- pluses: 6pcs/circle
- line speed: 150
Shipping List:
- 1set Metal frame
- 4pcs 97mm mecanum wheel
- 4pcs 37 DC motor
- 1set Screw kit
