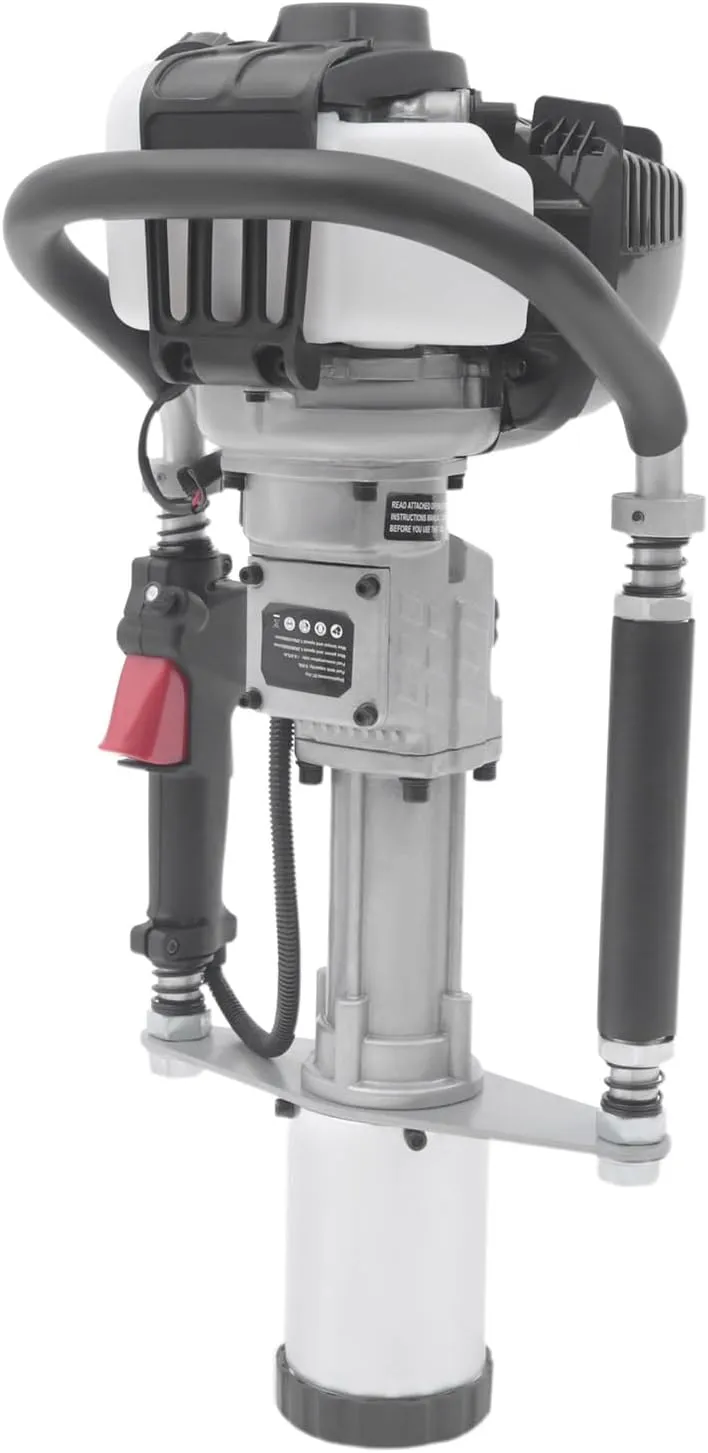

- HIGH QUALITY MATERIAL: This gasoline pile driver is made of high quality plastic, iron, aluminum, sturdy and wear-resistant, impact-resistant, rust-resistant, keep it beautiful and practical, no need to replace it frequently. High quality carburetor makes the gasoline burn fully when working, the fuel consumption is only 19.87oz/hour, saving you cost. The combination of fuel tank, funnel, filter, mounting kit, etc. provides more convenience for your use
- EFFICIENT: This 37.7cc 4-stroke engine with precision cylinder, 1.2KW power, 8500r/min speed, 1.2Nm torque, impact energy up to 45J, and 1300-3000bpm impacts, efficiently help you to finish all kinds of piling work. Large-capacity 2-buckle 2-wheeled storage box, effectively preventing items from being lost, easy to store and carry to any workplace.
- GOOD HEAT DISSIPATION: This gasoline pile driver adopts air-cooling mode with multiple cooling holes on the body, which can timely reduce the temperature of the product during operation to avoid safety hazards, thus prolonging the product's service life. Four springs can effectively reduce the vibration of the engine to ensure the pile driving work smoothly.
- FUEL TANK: This 27.47oz semi-transparent fuel tank avoids frequent refueling and improves work efficiency. In addition, you can observe the oil level and refuel in time. Two different sizes of piling heads allow for a wider range of applications, and the threaded connection is also easy for you to change.
- APPLICATION: This gasoline pile driver is suitable for a series of piling projects such as gardening, road fencing, sea pontoon, agricultural fencing, grounding angle iron, flood emergency blocking, pond maintenance and so on. It can be widely used in home, construction site, power station, farm and other places.
Specification
Color: Black
Style: Modern
Assembly Required: Yes
Mount Type: Floor Standing
Volume: ≤104dB
Material: Plastic, Aluminum, Iron
Engine Type: Air-Cooled Single-Cylinder 4-Stroke
Fuel: Pure Oil(#92/95)
Displacement: 37.7cc
Fuel Tank Capacity: 0.65L/27.47oz
Fuel Consumption Rate: ≤0.47L/19.87oz/kw.h
Impact Energy: 20-45J
Max. Power And Speed: 1.2kw/8500r/min
Impact Times: 1300-3000bpm
Max. Torque And Speed: 1.2Nm/5500/min
Power Source: Gasoline Powered
Starter System: Hand Pull Start
Pile Head Size: φ45mm/1.77in, Max φ55mm/2.16in
Product Size: 30*30*63cm/11.81*11.81*24.8inch
Net Weight: 12kg/26.46lbs
Packing Size: 79.5*42*33cm/31.3*16.54*12.99inch
Package Included
1*Pile Driver
1*Fuel Tank
1*Filter Oil Nozzle
1* Funnel
2*Piling Heads
1*Tool Bag
1* English Manual
1* Storage Case
All Accessories for Installation
Notes
1. Please install and use it in strict accordance with the instructions, and pay attention to the safety precautions inside.
2. Please note that the product cannot be used for piling in water.
3. If the pile driver has the problem of not hammering, please check whether too much butter is added at the place where the butter is added, clean up the excess oil in the cylinder before disassembly, and add about 20 grams of high-temperature resistant butter again. And adjust the speed of carburetor. If the impact frequency is too high to hold, the impact frequency can be reduced. Otherwise, the impact frequency should be increased. Please note that this is fine tuning.
